Ccloud can offer XGSPON&GPON COMBO OLT Class C+/Class C++/ Class D / GPON ONU Triplexer and GPON ONU STICK series Transceivers solution.
XGSPON & GPON COMBO OLT
GPON ONU Triplexer
GPON ONU STICK

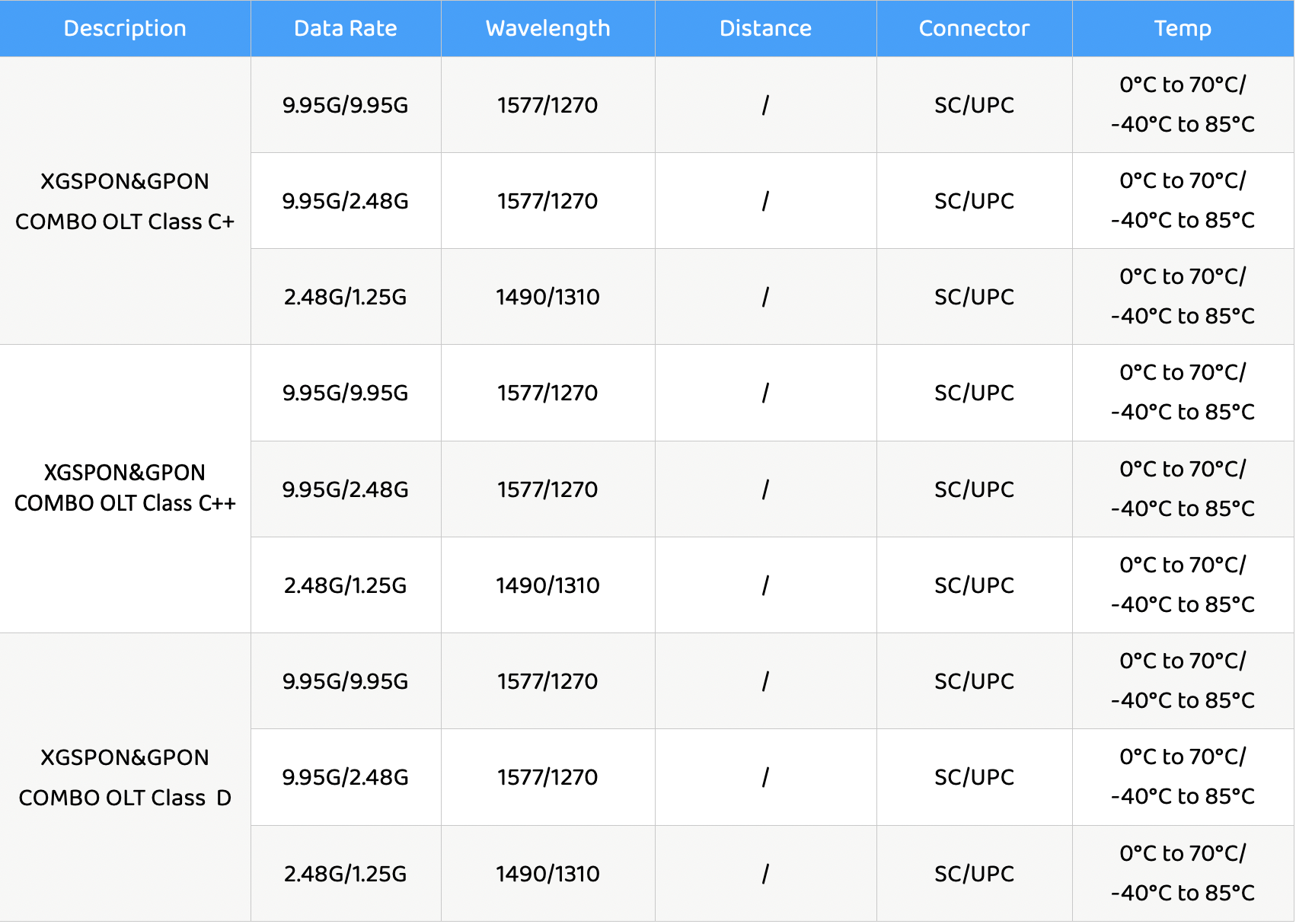

Ccloud can offer XGSPON&GPON COMBO OLT Class C+/Class C++/ Class D Transceiver.They are SC optical connector.
SC Simplex optical interface
Upstream:
9.953Gbps 1270nm burst APD Receiver
2.488Gbps 1270nm burst APD Receiver
1.244Gbps 1310nm burst APD Receiver
Downstream:
9.953Gbps 1577nm EML Transmitter
2.488Gbps 1490nm DFB Transmitter
CLASS C+/CLASS C++/CLASS D linkbudget
Package SFP+ 20PIN
Case Operating Temperature: C: 0 to +70°C,
I: -40 to +85°C

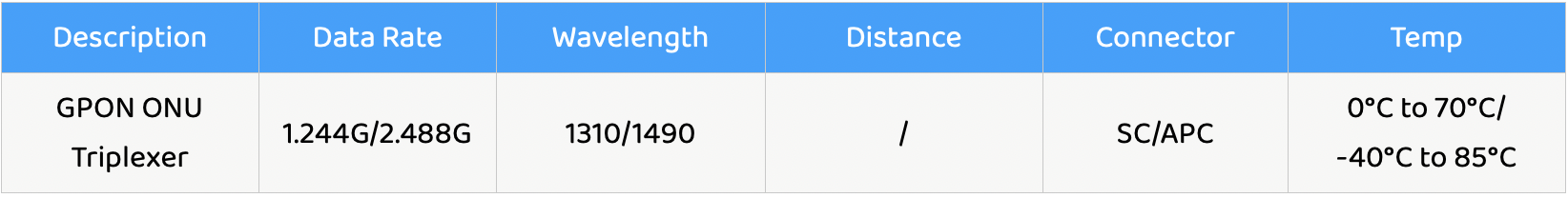

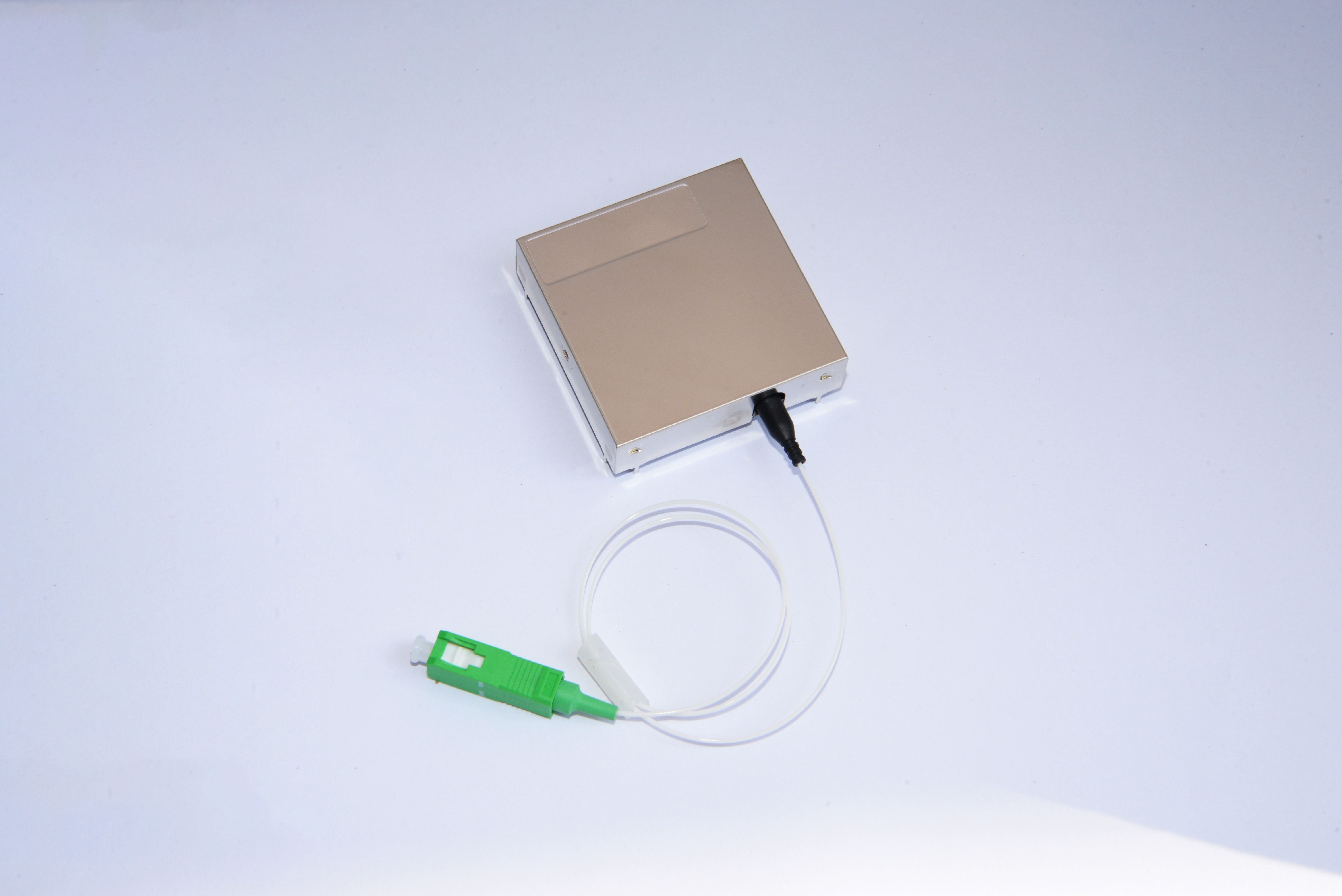

Ccloud can offer GPON ONU Triplexer Transceiver.They are SC/APC or SC/UPC Receptacle optical connector.
SC/APC or SC/UPC Receptacle optical connector
Upstream:
1.244Gbps burst mode with DFB
Downstream:
2.488Gbps with super-tia and PIN

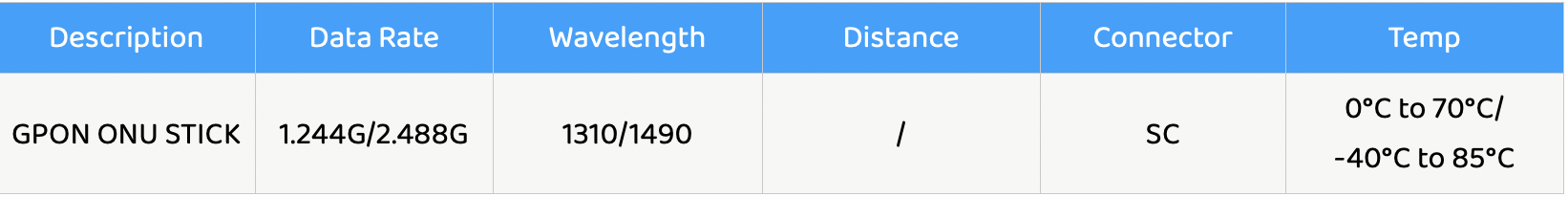

GPON ONU STICK With PON MAC
CLASS B+ linkbudget
ITU-T G.984
SFP MSA
Complitant with ROHS
Package SFP
Case Operating Temperature: C: 0 to +70°C, I: -40 to +85°C
Ccloud can offer GPON ONU Triplexer Transceiver.They are SC/APC or SC/UPC Receptacle optical connector.
SC/APC or SC/UPC Receptacle optical connector
Upstream:
1.244Gbps burst mode with DFB
Downstream:
2.488Gbps with super-tia and PIN
GPON ONU STICK With PON MAC
CLASS B+ linkbudget
ITU-T G.984
SFP MSA
Complitant with ROHS
Package SFP
Case Operating Temperature: C: 0 to +70°C, I: -40 to +85°C
