Ccloud can offer 800G OSFP、800G OSFP(LPO)、800G QSFP-DD 、800G QSFP-DD(LPO) series transceivers and multiple AOC solution for different reach and application.
800G OSFP
800G OSFP (LPO)
800G QSFP-DD
800G QSFP-DD (LPO)

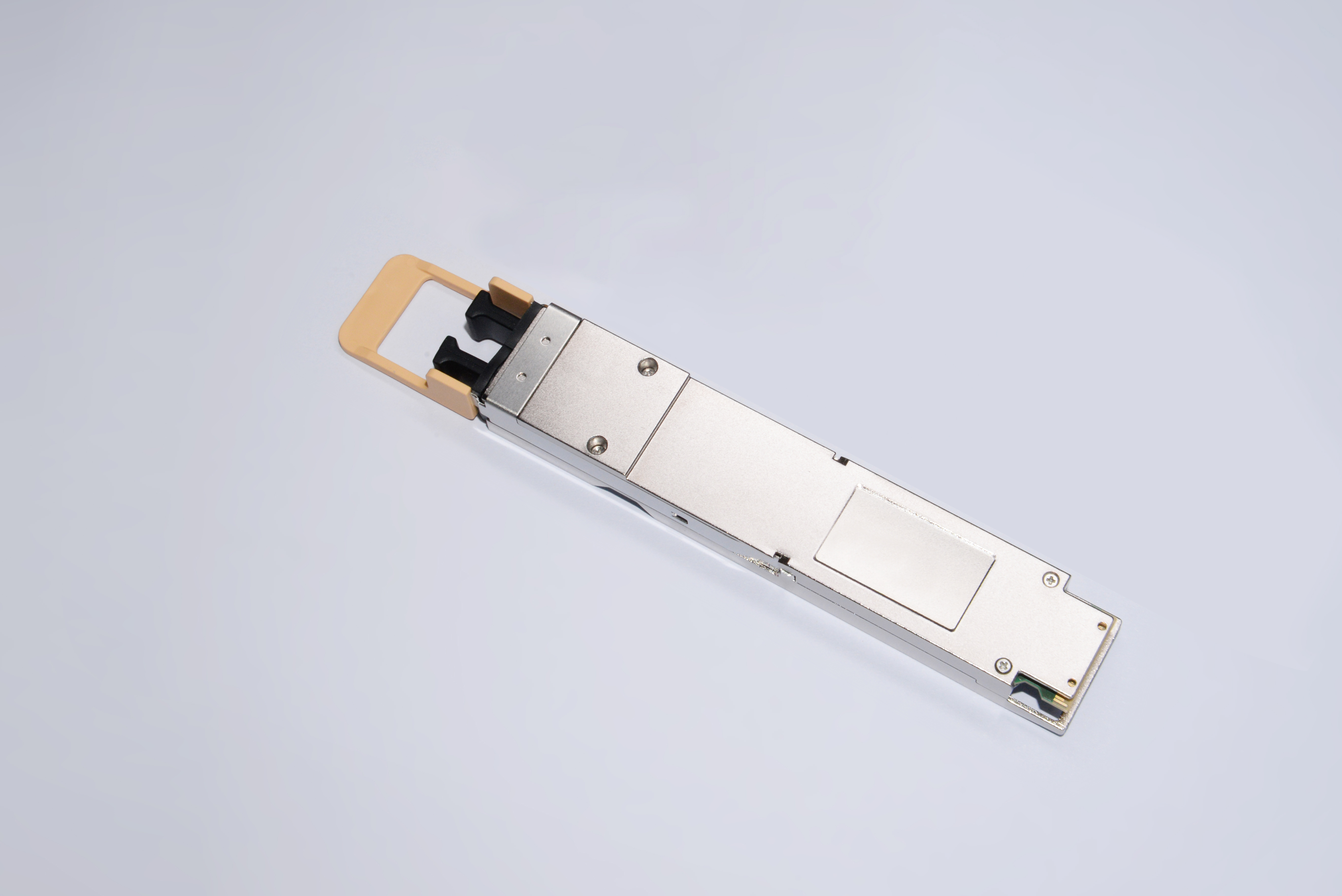

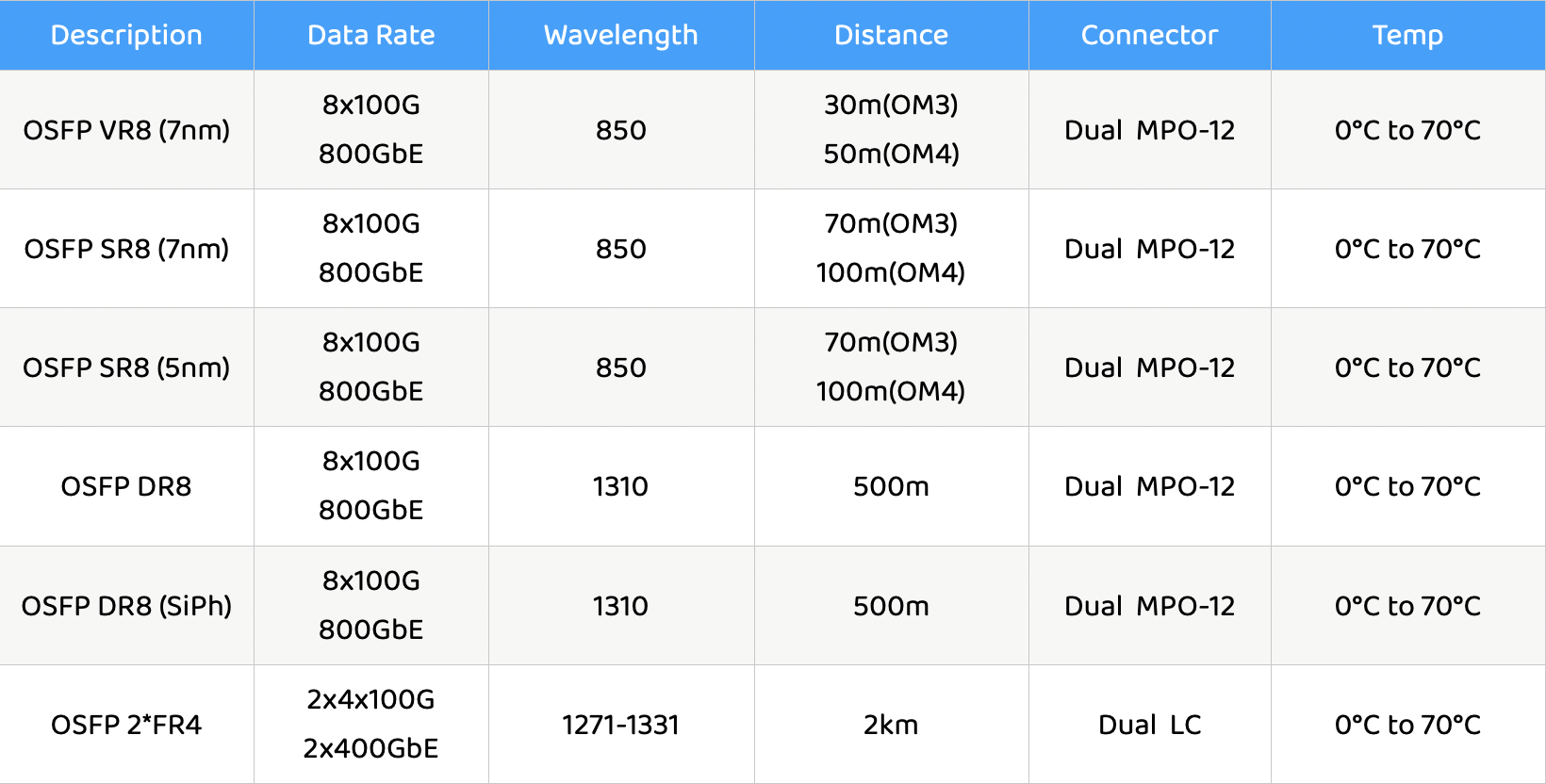

Ccloud 800G OSFP Transceivers are compliant to the OSFP MSA. The firmware supports CMIS 5.0 or later version.We can offer VR8,SR8,DR8 ,2*FR4 transceivers and multiple AOC solution for different reach and application .
Supports 850Gb/s
Single 3.3V Power Supply
OSFP MSA Compliant
8x106.25 Gb/s (PAM4) optical interface
8x106.25 Gb/s (PAM4) electrical interface
Commercial case temperature range of 0°C to 70°C
CMIS 5.0 or later version

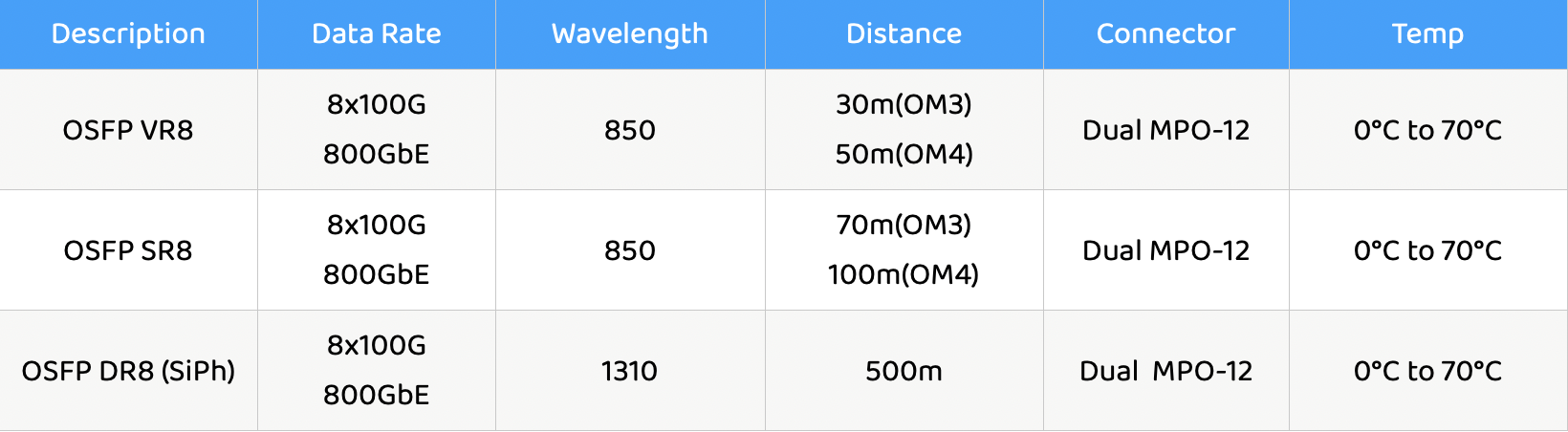

Ccloud 800G OSFP Transceivers are compliant to the OSFP MSA.The firmware supports CMIS 5.0 or later version. We can offer VR8,SR8,DR8 transceivers for different reach and application .
Supports 850Gb/s
Single 3.3V Power Supply
OSFP MSA Compliant
106.25Gbps (PAM4)
53.125Gbps (PAM4)
Commercial case temperature range of 0°C to 70°C
CMIS 5.0 or later version

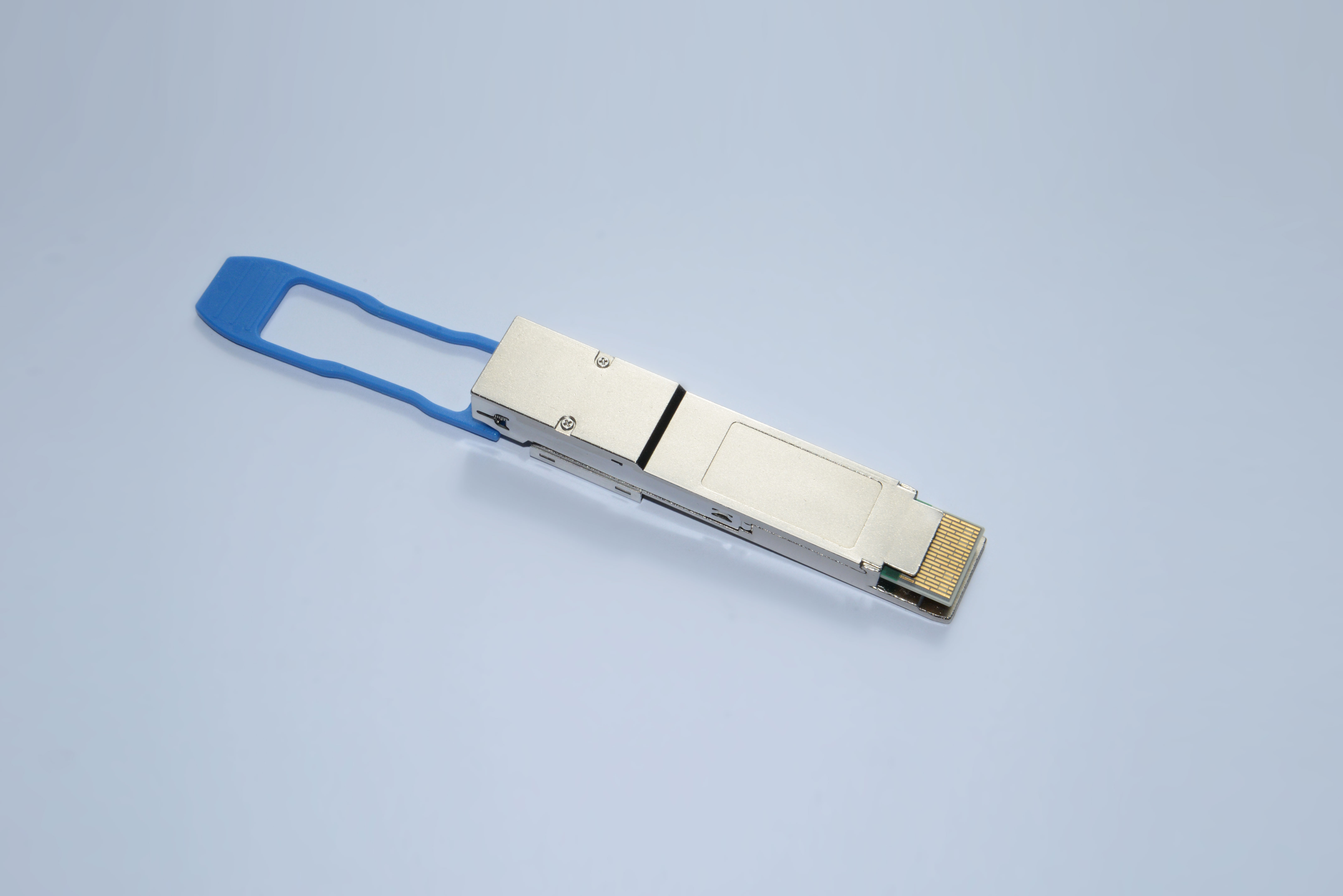

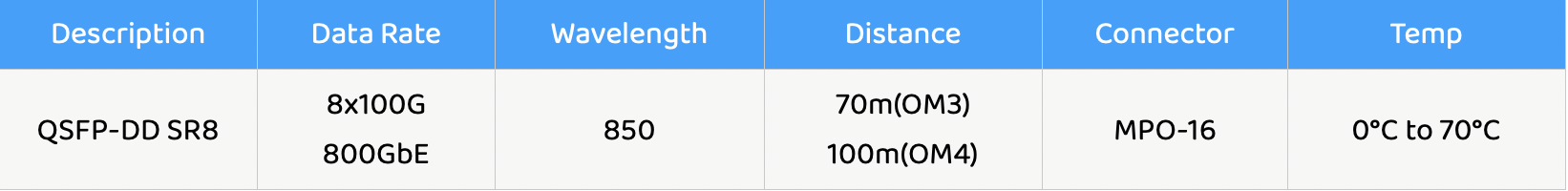

Ccloud 800G QSFP-DD Transceivers are compliant to the QSFP-DD800 MSA.The firmware supports CMIS 5.0 or later version. We can offer SR8 transceivers and multiple AOC solution for different reach and application
Supports 850Gb/s
Single 3.3V Power Supply
QSFP-DD800 MSA Compliant
8x106.25 Gb/s (PAM4) optical interface
8x106.25 Gb/s (PAM4) electrical interface
Commercial case temperature range of 0°C to 70°C
CMIS 5.0 or later version
Ccloud 800G QSFP-DD Transceivers are compliant to the QSFP-DD800 MSA.The firmware supports CMIS 5.0 or later version.We can offer SR8 transceivers for different reach and application .
Supports 850Gb/s
Single 3.3V Power Supply
QSFP-DD800 MSA Compliant
106.25Gbps (PAM4)
53.125Gbps (PAM4)
Commercial case temperature range of 0°C to 70°C
CMIS 5.0 or later version
